Sanitary Belt Conveyors
Food grade belt conveyors for washdown environments — from point-A-to-point-B transport to freezer-rated arctic systems and steep elevation changes. The widest range of sanitary applications, on TIG-welded stainless frames with FDA belting.
Flat-Top Belt Conveyors
Smooth, continuous belt surface for stable product handling. FDA-approved belting materials from Intralox, Habasit, or equivalent. Available in straight, curved, and incline/decline configurations with adjustable speed via VFD or Mag-Drive.
Modular Belt Conveyors
Modular plastic belt with interchangeable configurations — flat, raised rib, friction top, perforated. Self-tracking belt designs reduce maintenance. Side-flexing modules available for curved layouts without transfer points.

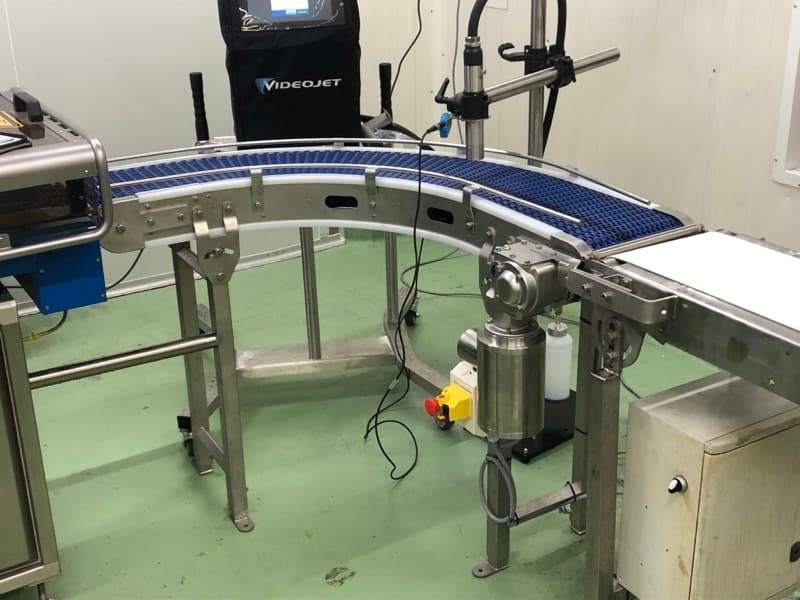

Radius, S-Curve & 180° Belt Conveyors
Side-flexing modular belt (Intralox or Habasit) or a radius flat belt on a TIG-welded stainless frame carries product around the corner on one continuous belt — no dead plates, no transfer gaps, no product tumble. The inside radius is set by the belt's collapse factor.
Incline & Decline Conveyors
Cleated belt options for positive product control on steep angles. Nosebar transitions for smooth product hand-off at top and bottom. Available in straight incline, Z-frame, and custom angle configurations.

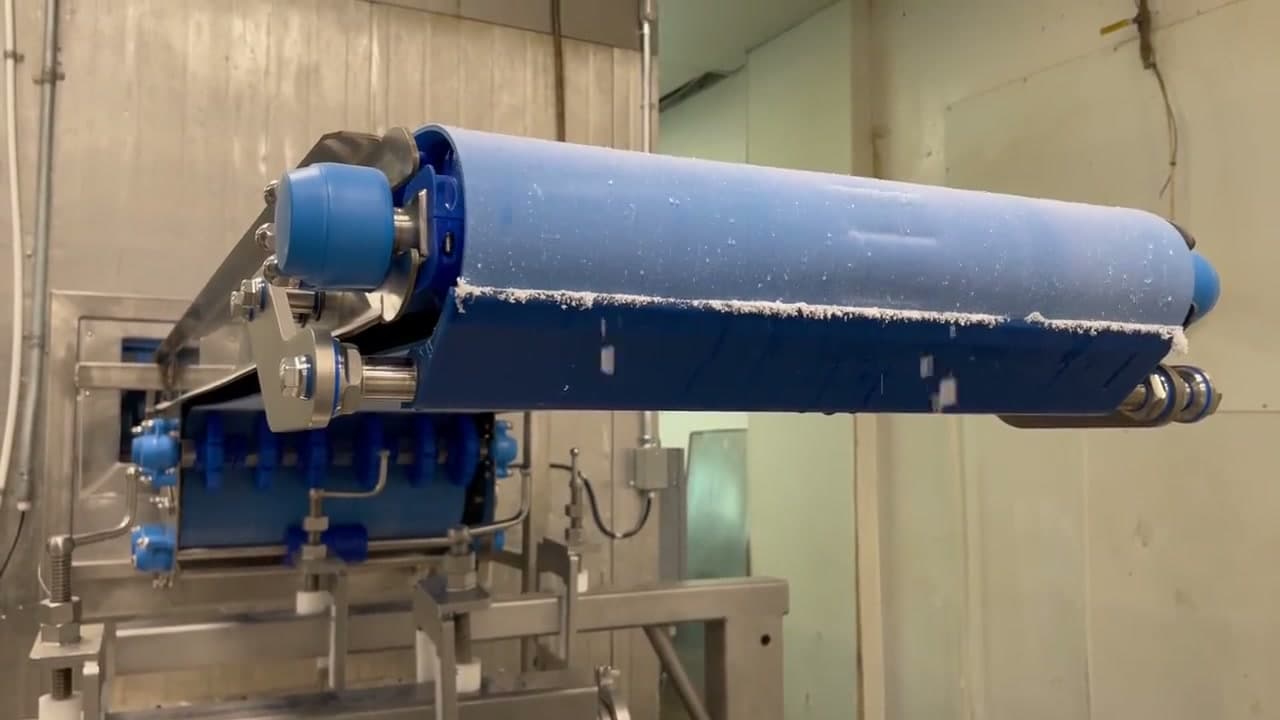

Freezer / Arctic Conveyors
Materials and components rated for sustained sub-zero operation down to -40°F / -40°C. Low-temperature lubricants and seals, condensation management at freezer-to-ambient transitions, and insulated frame options to reduce ice buildup.
Every AQS conveyor shares one construction standard — continuous TIG welds, 304/316 mirror-polished stainless, sloped drainage, and IP69K-capable components — whether it carries a tray, a case, or a full pallet.
Power Options
Choose the drive technology that matches your application — from precision Mag-Drive to proven gear motors.
Magnetic direct-drive hub motor — magnets push against magnets, no gears, no oil. IP69K washdown safe with 55% energy savings and a 3-year warranty.
Stainless steel washdown-rated gear motors with proven reliability for constant-speed transport. VFD-compatible for adjustable speed control.
Common Questions
Size a Belt Conveyor Yourself
The free calculators our engineers use to size conveyors — belt pull, speed, throughput, and drive selection. No login; your inputs stay in your browser.
Free belt pull calculator for modular plastic belt conveyors: straight, incline, L, Z, radius and S paths, startup pull, belt check, and drum motor pick.
Free UHMW wearstrip span calculator: support spacing and end overhang from point-load deflection, washdown temperature knockdown, and creep check.
Free incline conveyor calculator: solve length, rise, and angle for straight, incline, L and Z conveyors, with plain-belt limits and cleat advice.
Free conveyor speed calculator: belt speed in ft/min from packages per minute, product length and gap, or solve for rate or gap. Gap time and transit time.
Free conveyor throughput calculator: lb/hr, lb/day or kg/hr to packages per minute, belt speed, and belt load in lb/ft, plus bulk bed sizing.
Static and kinetic coefficient of friction table for steel, UHMW, rubber, plastics, aluminum, wood and brass, dry and lubricated.
Where It Fits in the Line
See how this solution integrates into real production line configurations. Explore AQS products in this line.
One line, several conveyor jobs: belt conveyors for transport between process stages, 24V MDR for zero-pressure case accumulation, stainless chain for full pallet weight. AQS builds the whole path, so every segment shares the same welded, washdown construction and the same controls.
